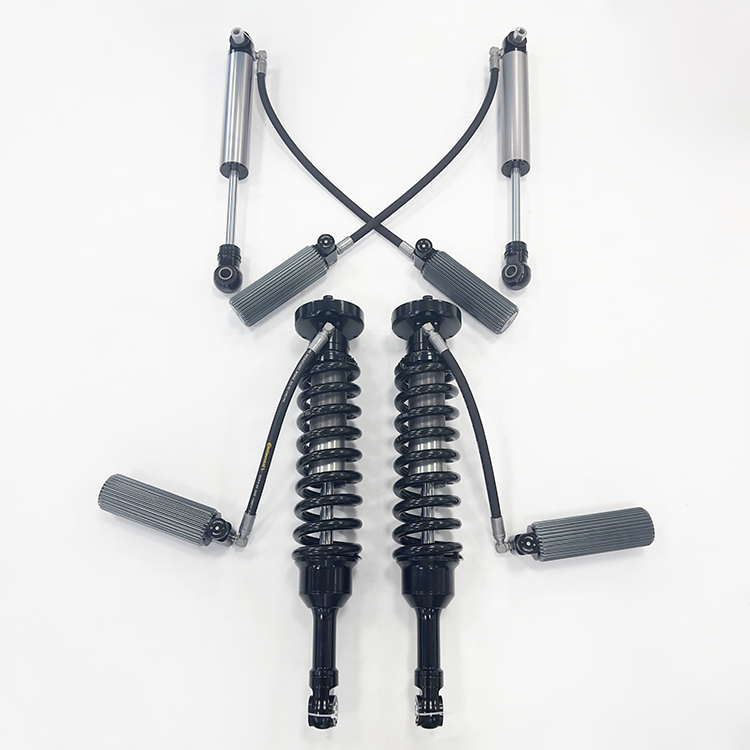

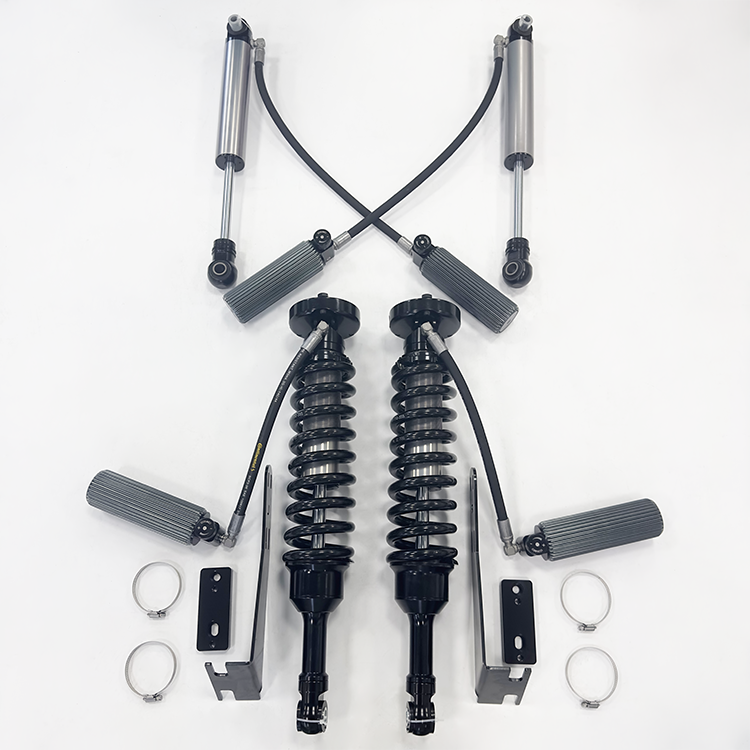

TOYOTA SEQUOIA 2002-2007 2.5/3.0 SHOX factory high performance offroad/4×4/overland/racing shocks/shox 2.5 inches lift , hard and soft adjustable, with remote reservoir/subtank

Short Description:


Product Detail

Product Tags

7bfaf999ccce859249cd15be07adde5



Design: Mono tube design

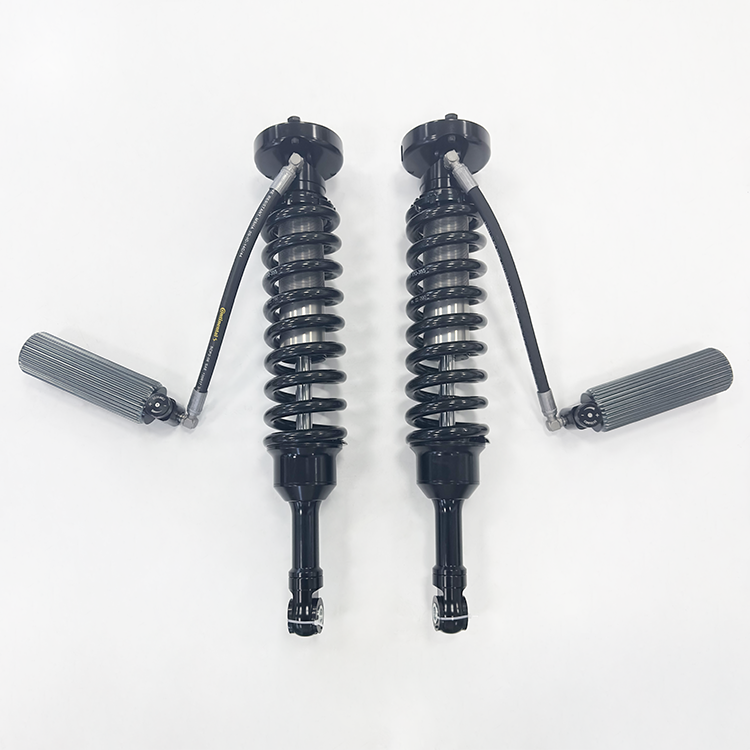

Body: Front coilover, rear smooth body, seamless steel,



internal & external polished and honed,



Body Plating: Environment friendly white zinc-galvanized surface,



Components: CNC machined 6061 aluminum alloy



Hose: German Continental brand oil hose, maximum pressure 22.4MPA



Valving: Tunable, velocity sensitive deburred valve shims



Seal: Japan NOK twin-lips main oil seal (same with KYB OEM shock absorbers)



wiper seal and scraper seal



Oil: German FUCHS brand shock oil (freezing point lower than-53 ˚),



advanced suspension fluid for improved performance at variable temperatures.  Piston Rod: 18mm/22mm diameter, hard chrome plated, heat-treated



Piston Rings: PFTE materials



Bearing: Spherical, PFTE-lined, heat-treated alloy steel

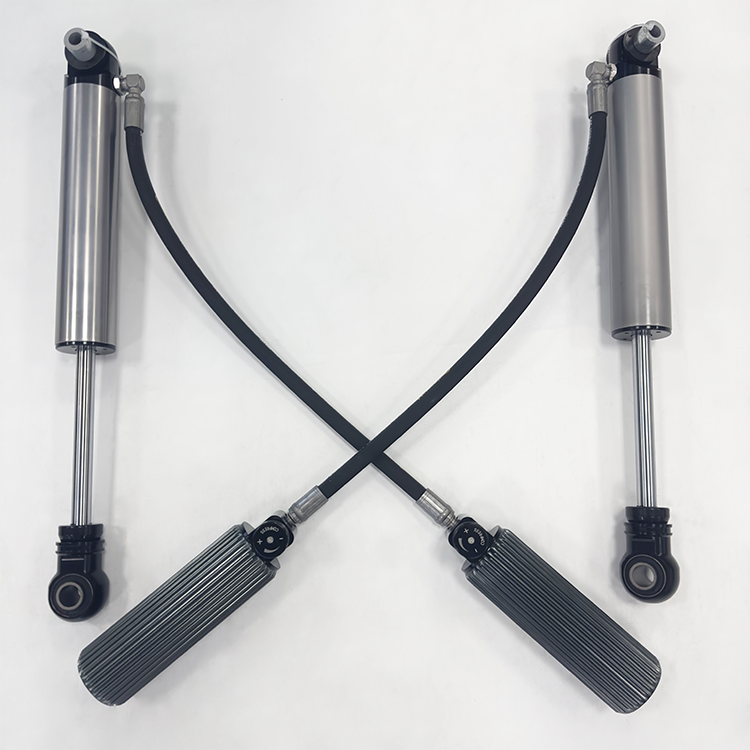

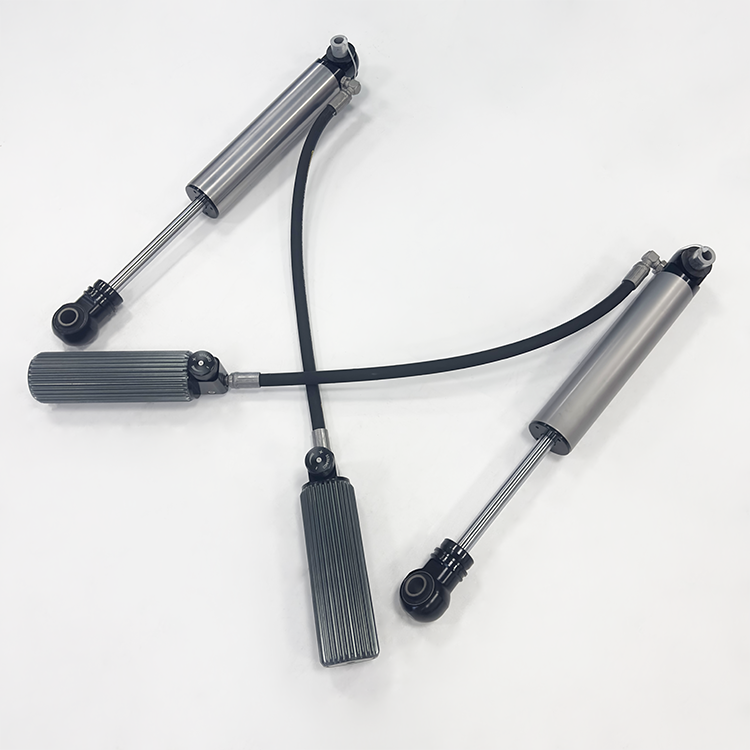

2.5/3.0 REMOTE RESERVOIR



Body: 6061 aluminum alloy, with heat dissipation system



Lubricant: Japan made lubricant oil



Piston: High or low flow piston



Adjustor: CNC machined aluminum



Charge inlet: Only specialist allowed operating the nitrogen releasing and charging





PARAMETERS:

Diameter: 2.5/3.0 inches

Lift: 0/2/2.5 inches lift available

Adjust: Compression 8 steps adjust

Compression 8 steps +rebound 6 steps adjust

Colors: red, yellow, green, pink, purple, black available



Application:

2002-2007  TOYOTA SEQUOIA

2008-2022  TOYOTA SEQUOIA







TERMS:

Payment terms: TT after order confirmation

New items development: 2 weeks and for free, but need offer necessary samples or drawings

MOQ: Starts from one set

Delivery time: 7-15 days after receiving the payment

4fab10094c9ce672ba4b1adf8f13b4d

-OE quality, OE INSTALLATION
Designed according to OE standard, easy to install

- Stable performance, suitable all kinds of driving conditions/all terrain
HPR shock absorbers are selecting high quality mechanism parts to make sure the extraordinary durability, intensity even in the extremely environments.
HPR shock absorbers provide tight grip and better manoeuving even in case of large load

-Comfortable, better manoeuving
Height Higher-lower adjustable and performance hard-soft adjustable, to suitable not only mountain, desert, snow, racing field etc extreme conditions’ driving, but also the normal street use.

-Protect car body and other spare parts
Reduce the impact to the car body, protecting other spare parts, meanwhile provides the driving comfortability

/about-us/

1、We’re professional offroad racing shock absorbers manufacturer, not trading company, you will get the best possible price and professional service.

2、we have more than 15-years-experience of researching, manufacturing original shock absorbers and all kinds of adjustable shock absorbers, very good relationship with all the supply chains of shock absorbers industry, and we invested the high-precision machining center to make sure all the metal parts high quality and precisely matching with each other.

3、We could meet customers’ special requirements, such as different colors: black, blue, red, purple, green, gray, etc, marking your logo on the shox body, specific outlook of metal parts, customerized packing,etc.

4、Stable and durable quality to make sure best performance during long distance racing driving in all terrain

5、We will offer free replacement wearing parts, such as oil seal, bearing along with shipments.

6、We designed 5 steps sealing system to make sure no oil leakage.

4afb7529fee5d2aa37d876c942d7f22

Shipping:

      Less than 5 sets: we suggest to deliver by express, such as TNT, DHL, FEDEX, UPS

      More than 5 sets: we suggest to deliver by sea

      Or, if you have forwarder in China, we can send goods to the appointed warehouse directly



Packing:

     Every 1 piece shock packing in one carton, protected by PE Foam

     Normally, we use 5 walls neutral yellow cardboard export cartons, put application stickers on each side of the cartons

     Color boxes will be accepted only when orders more than 50 sets.

     Customer’s logo could be lasing mark on the aluminum parts of the shocks



Shipping
HPR shocks packing
