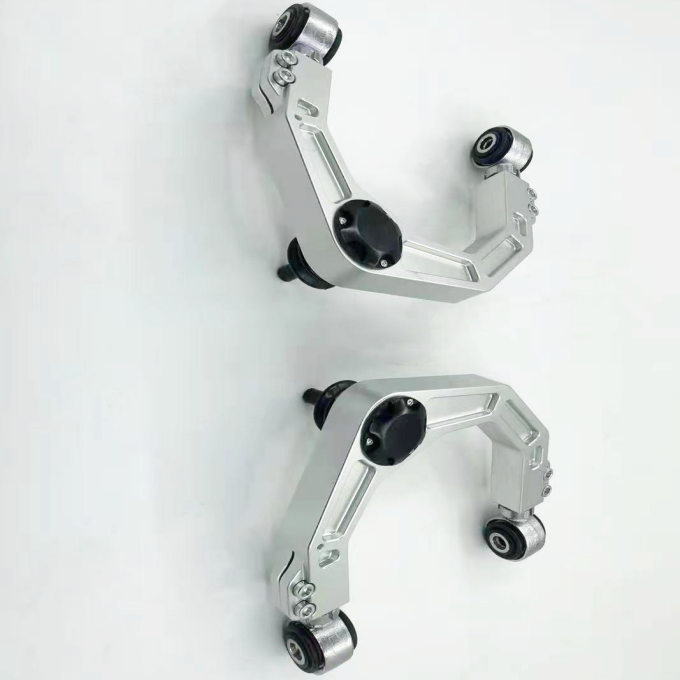

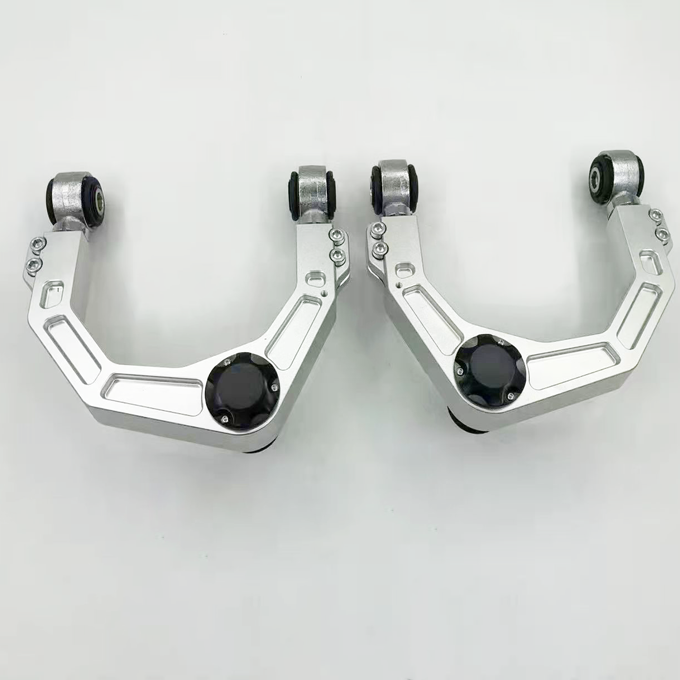

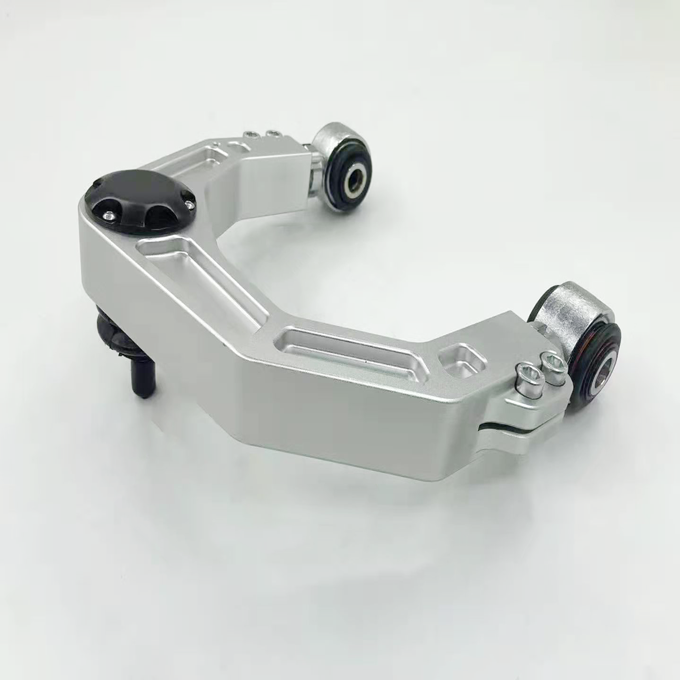

Offroad 4×4/overland Suspension forged aluminum alloy heavy duty adjustable front upper control arm Lift Kit For 14-20 Ford F-150 truck

Short Description:

The Engineered HPR HD upper control arms are designed to correct the ball-joint angle with built in 3deg caster when you lift your vehicle 40mm1.5inch)or more


Product Detail

Product Tags

SPECIFICATION:

When an Independent Front Suspension (IFS) vehicle is fitted with a suspension lift, the caster and camber can be pushed outside the factory specifications. IFS vehicles generally have a few degrees of adjustment in their camber and caster from the factory. Adding HPR HD upper control arms brings the alignment cams back into an acceptable range for both caster and camber.

The HPR HD Upper Control Arm will provide an increase between +2.5 and +3.5 degrees of caster and up to 1.5 degrees of negative camber increase (figures based off an approximate 50mm or 2 inch lift).

FEATURES:

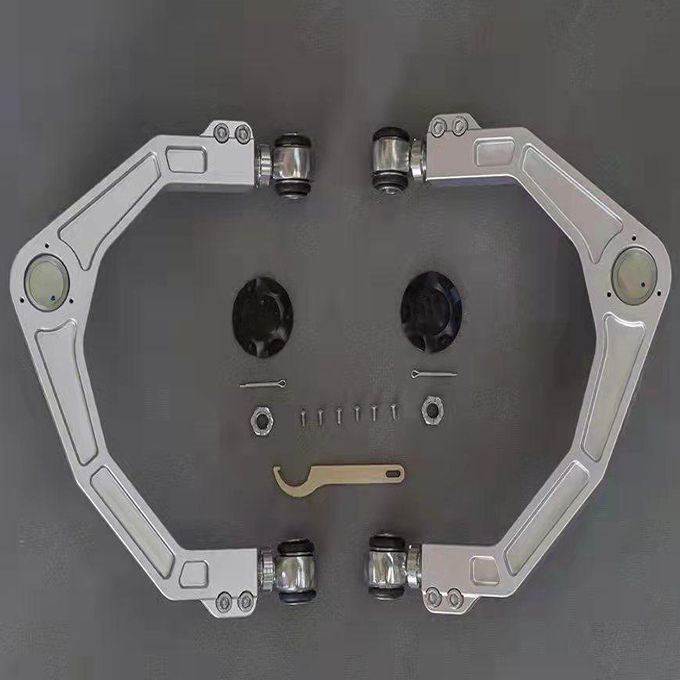

 - Complete upper control arm kit for both left and right side, includes new ball joints, OE style rubber frame bushings (installed), washers and wrench

-Made from forged High Strength 6082 Aluminum Alloy, 40 mm thickness

-Length of ball joints could be adjusted within 25 mm

-Including dust-proof for the ball joints, extend the lift-time of ball joints

- Works for any lift height of 1.5″ or more

- Even lighter and stronger than OEM upper control arm, provide better steering and driving performance

APPLICATION:

Application:
2014-2020 Ford F-150

TERMS:
Payment terms: TT after order confirmation
New items development: 2 weeks, but need offer necessary samples or drawings
MOQ: Starts from 10 pcs
Delivery time: 25 days after receiving the payment

upper-control-arm-installed

WHY CHOOSE US:

1、We’re professional offroad racing shock absorbers manufacturer, not trading company, you will get the best possible price and professional service.

2、we have more than 15-years-experience of researching, manufacturing original shock absorbers and all kinds of adjustable shock absorbers, very good relationship with all the supply chains of shock absorbers industry, and we invested the high-precision machining center to make sure all the metal parts high quality and precisely matching with each other.

3、We could meet customers’ special requirements, such as different colors: black, blue, red, purple, green, gray, etc, marking your logo on the shox body, specific outlook of metal parts, customerized packing,etc.

4、Stable and durable quality to make sure best performance during long distance racing driving in all terrain

5、We will offer free replacement wearing parts, such as oil seal, bearing along with shipments.

6、We designed 5 steps sealing system to make sure no oil leakage.

SHIPPING AND PACKING:

Shipping:
Less than 10 sets: we suggest to deliver by express, such as TNT,DHL,FEDEX,UPS

More than 10 sets: we suggest to deliver by sea. Or, if you have forwarder in China, we can send goods to the appointed warehouse directly
Packing:
Every 1 Set upper control arm packing in one carton, protected by PE Foam

Normally, we use 5 walls neutral yellow cardboard export cartons, put application stickers on each side of the cartons.
Color boxes will be accepted only when orders more than 50 sets.
