SUZUKI JIMNY 2.25 mono tube shocks installation guideline
high performance offroad/4×4/racing shocks/shox 2.5 inches lift , hard and soft adjustable, with remote reservoir/subtank installation manual example

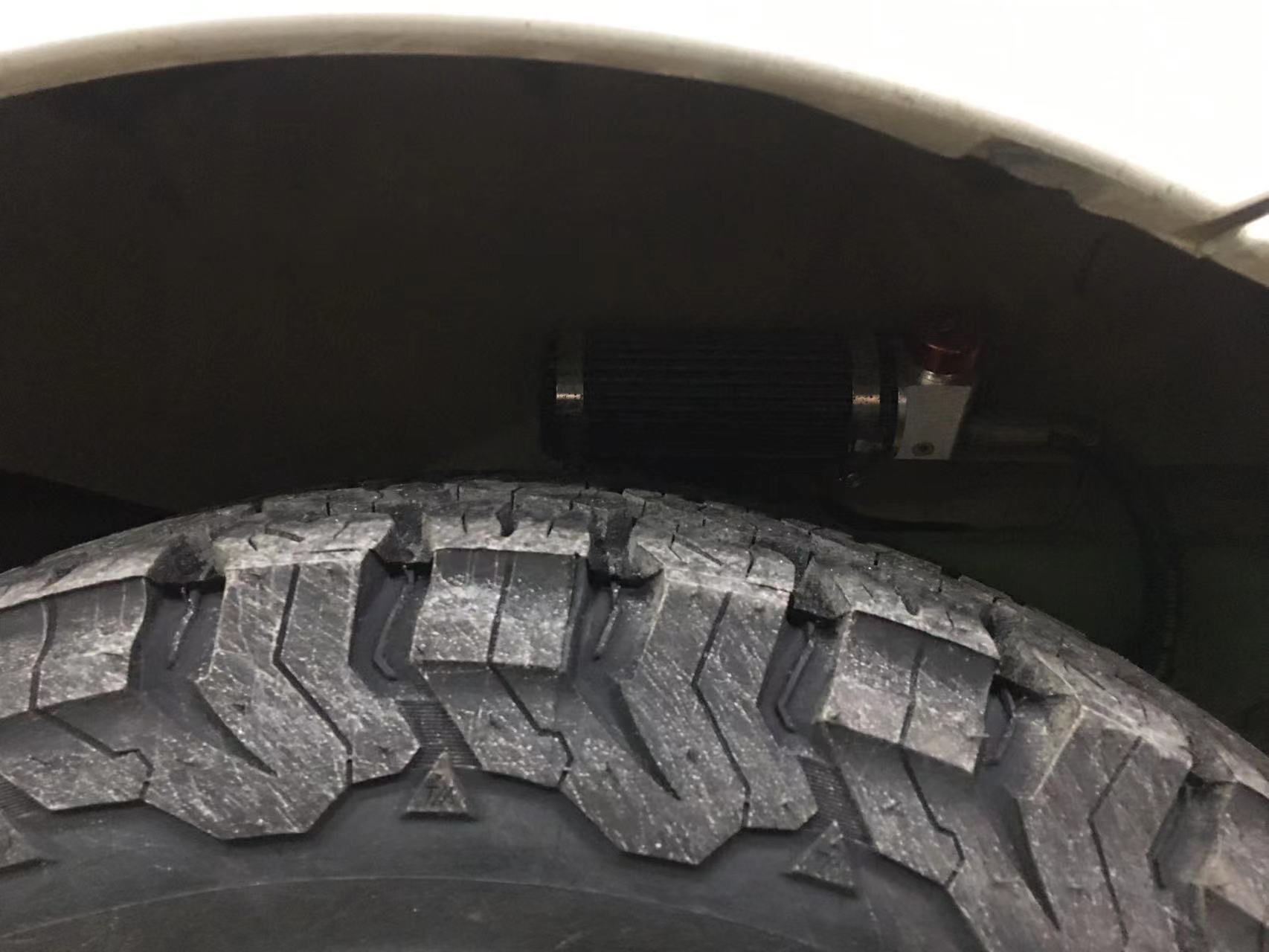

-Front shocks subtank/ remote reservoir fix on the top of the tyre
2.25 inch diameter body
Mono tube
Compression 12 steps adjust
With remote reservoir+oil hose
2.5 inch lift

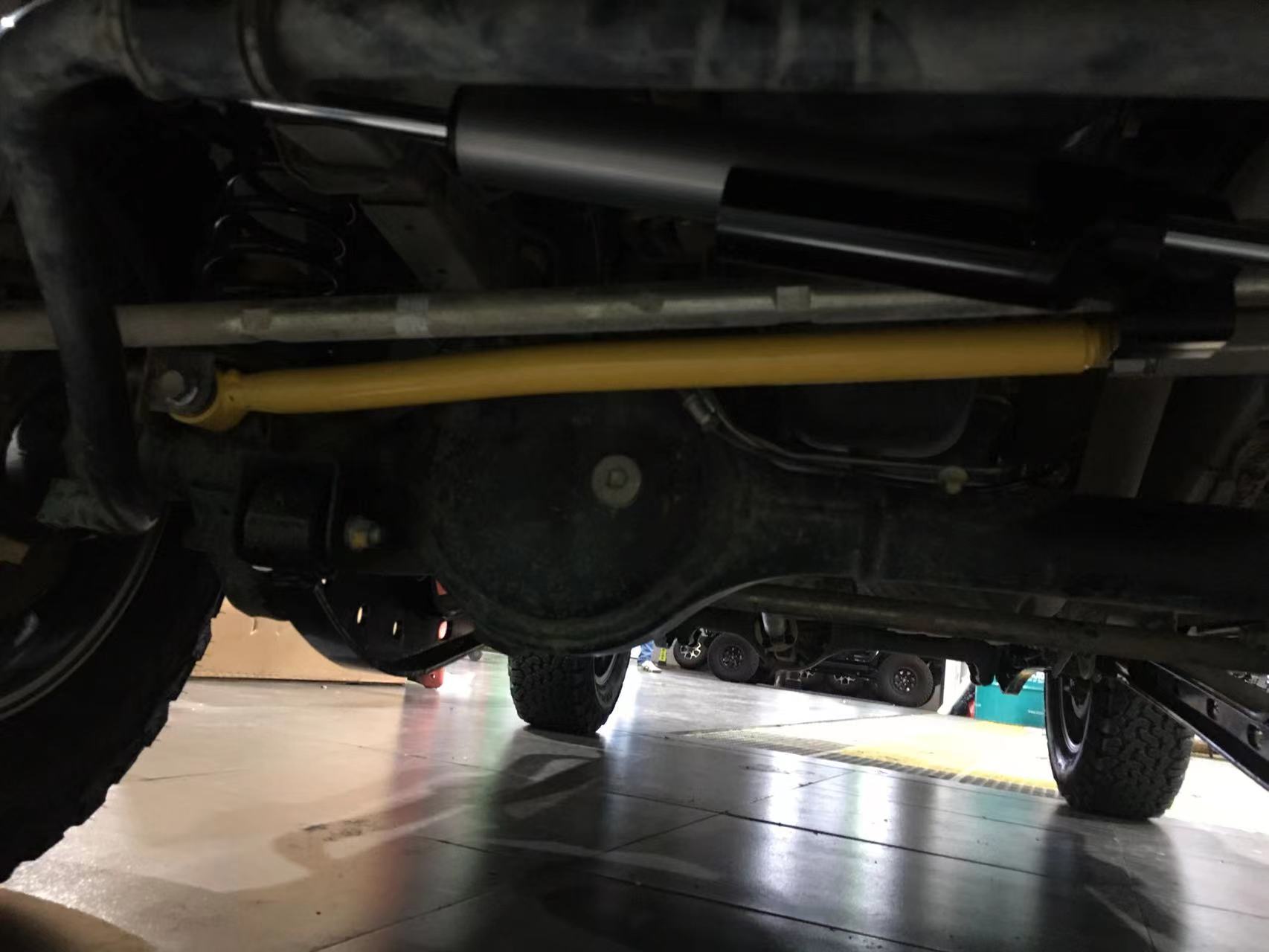

-Rear shocks subtank/ remote reservoir fix at the front the tyre
2.25 inch diameter body
Mono tube
Compression 12 steps adjust
With reservoir+piggyback
2.5 inch lift
Advantages:
-OE quality, OE INSTALLATION
Designed according to OE standard, easy to install
- Stable performance, suitable all kinds of driving conditions/all terrain
HPR shock absorbers are selecting high quality mechanism parts to make sure the extraordinary durability, intensity even in the extremely environments.
HPR shock absorbers provide tight grip and better manoeuving even in case of large load
-Comfortable, better manoeuving
Height Higher-lower adjustable and performance hard-soft adjustable, to suitable not only mountain, desert, snow, racing field etc extreme conditions’ driving, but also the normal street use.
-Protect car body and other spare parts
Reduce the impact to the car body, protecting other spare parts, meanwhile provides the driving comfortability
