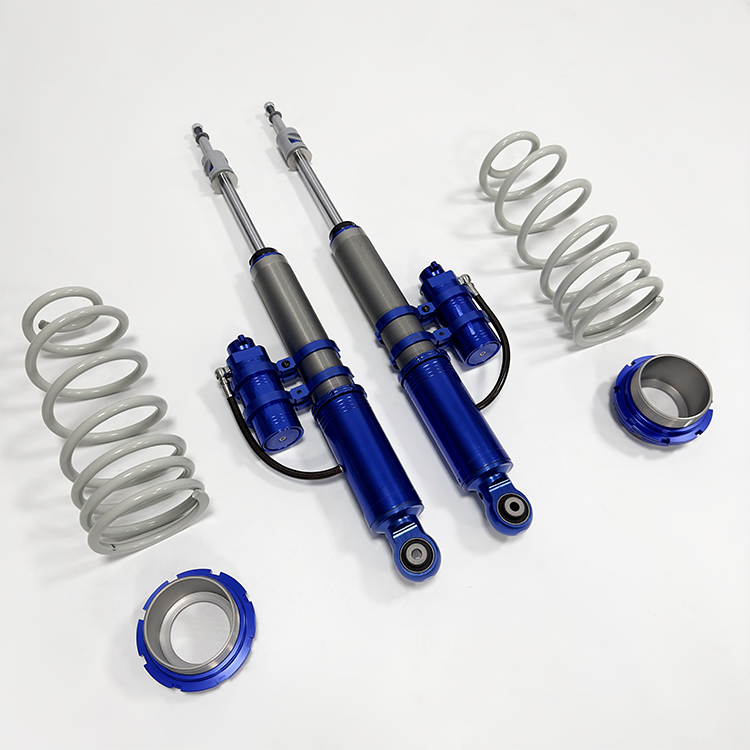

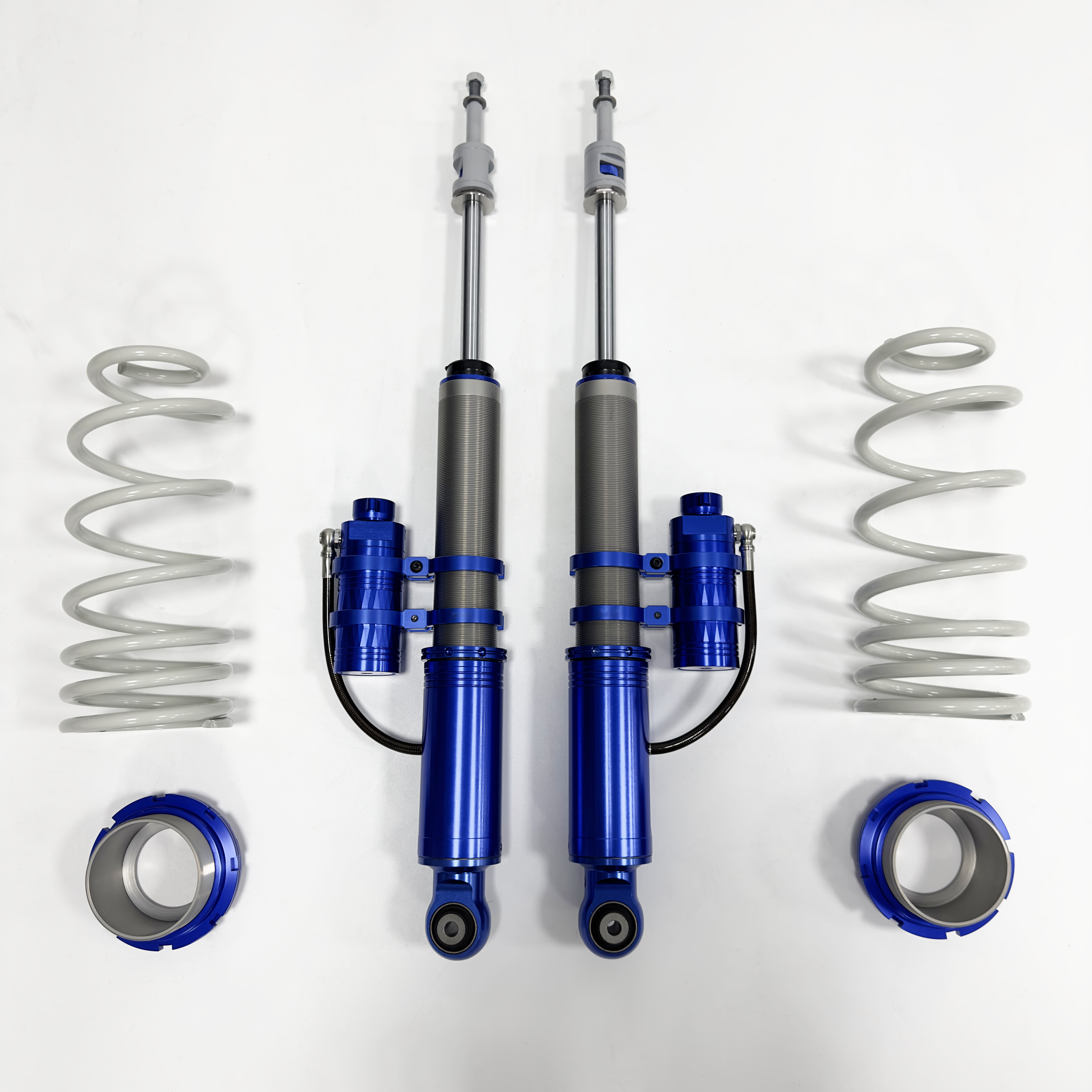

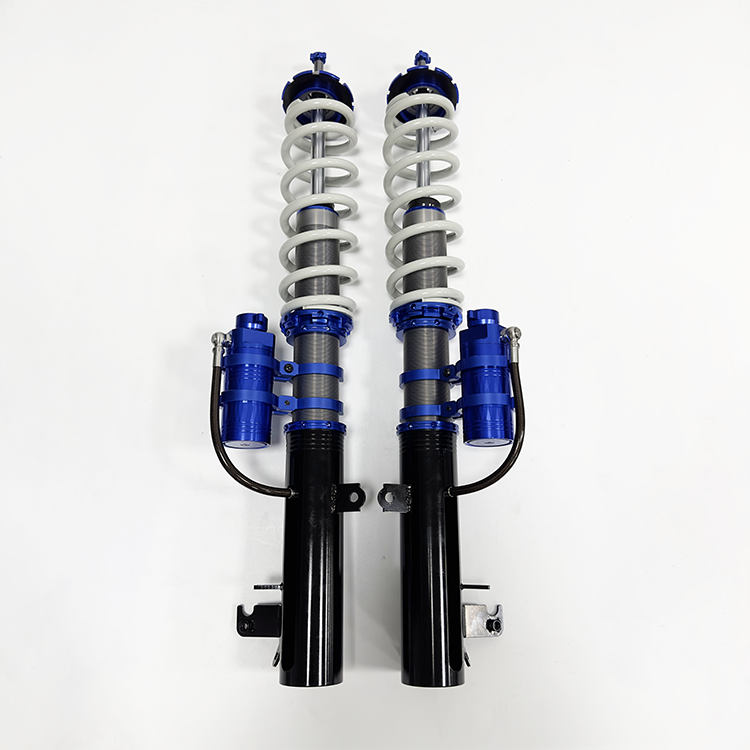

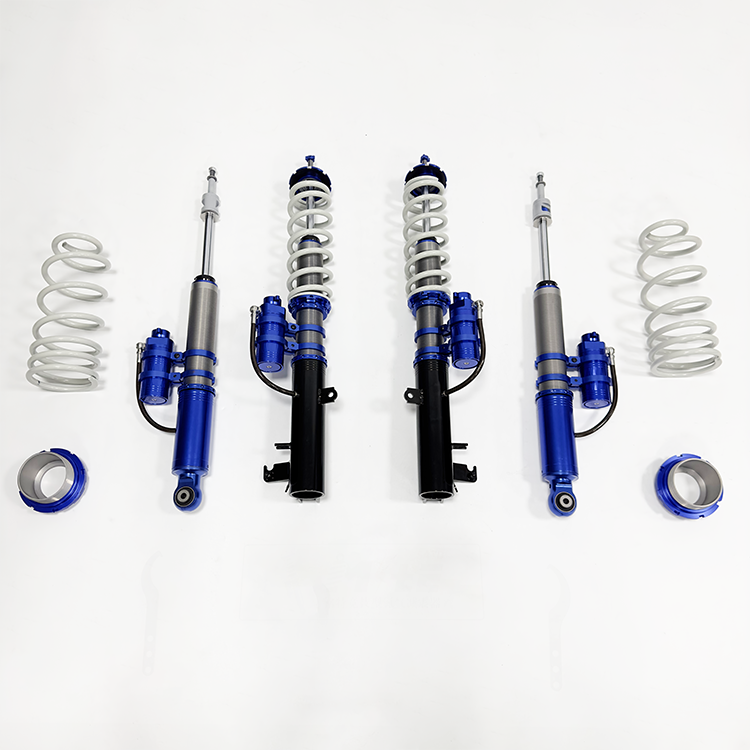

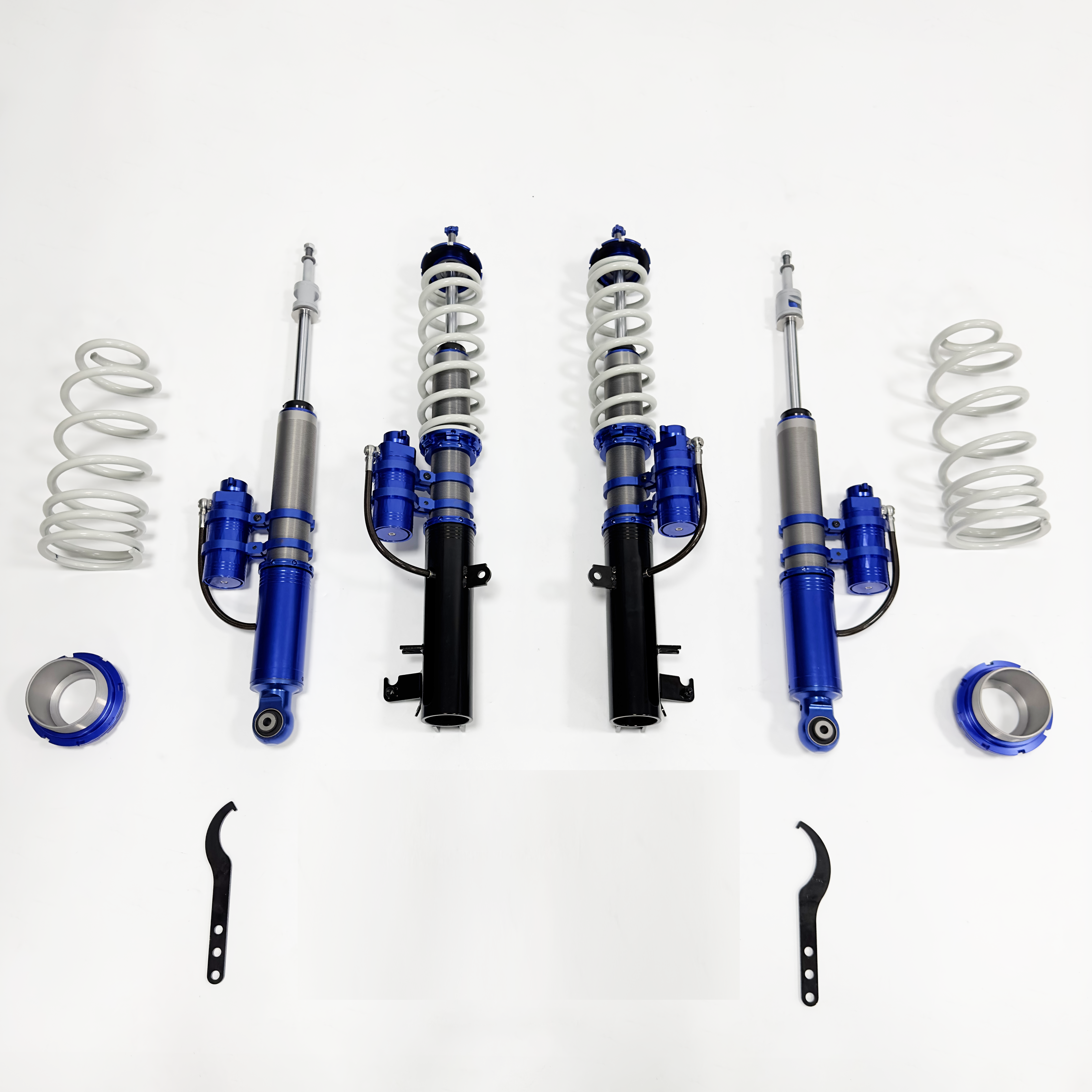

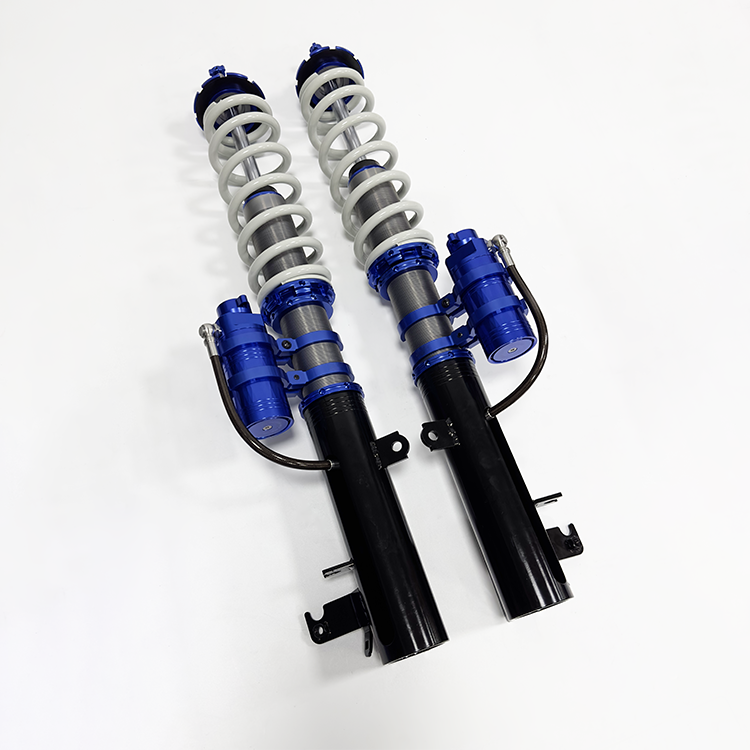

HONDA FIT 3 GK5 2013+ 2.0 SHOX factory high performance racing Nitrogen mono tube shocks With remote reservoir, one way/two-way adjustable

Short Description:


Product Detail

Product Tags

FEATURES:

Design: Mono tube design

Body: Front coilover, rear smooth body, seamless steel, Internal & external polished and honed,

Body Plating: Environment friendly white zinc-galvanized surface,

Components: CNC machined 6061 aluminum alloy

Valving: Tunable, velocity sensitive deburred valve shims

Seal: Japan NOK twin-lips main oil seal (same with KYB OEM shock absorbers)wiper seal and scraper seal

Oil: German FUCHS brand shock oil (freezing point lower than-53 ˚),

advanced suspension fluid for improved performance at variable temperatures.  Piston Rod: 18mm diameter, hard chrome plated, heat-treated

Piston Rings: PFTE materials

Eye ring: Rubber or Alloy Steel Bearing

Oil hose:Japan Teflon hose

2.0 REMOTE RESERVOIR:

Body: 6061 aluminum alloy, with heat dissipation system
Lubricant: Japan made lubricant oil
Piston: High or low flow piston
Adjustor: CNC machined aluminum
Charge inlet: Only specialist allowed operating the nitrogen releasing and charging

PARAMETERS:

Diameter: 2.5/3.0 inches
Lift: 0/2/2.5 inches lift available
Adjust: Compression 24 steps +rebound 24 steps adjust
Colors: red, yellow, green, pink, purple, black available

Application:

2013+  HONDA FIT 3 GK5  2013+

TERMS:

Payment terms: TT after order confirmation

New items development: 2 weeks and for free, but need offer necessary samples or drawings

MOQ: Starts from one set

Delivery time: 7-15 days after receiving the payment

Advantages:

-OE quality, OE INSTALLATION
Designed according to OE standard, easy to install

- Stable performance, suitable all kinds of driving conditions/all terrain
HPR shock absorbers are selecting high quality mechanism parts to make sure the extraordinary durability, intensity even in the extremely environments.
HPR shock absorbers provide tight grip and better manoeuving even in case of large load

-Comfortable, better manoeuving
Height Higher-lower adjustable and performance hard-soft adjustable, to suitable not only mountain, desert, snow, racing field etc extreme conditions’ driving, but also the normal street use.

-Protect car body and other spare parts
Reduce the impact to the car body, protecting other spare parts, meanwhile provides the driving comfortability

SHIPPING and PACKING:

Shipping:
Less than 5 sets: we suggest to deliver by express, such as TNT, DHL, FEDEX, UPS
More than 5 sets: we suggest to deliver by sea
Or, if you have forwarder in China, we can send goods to the appointed warehouse directly

Packing:
Every 1 piece shock packing in one carton, protected by PE Foam
Normally, we use 5 walls neutral yellow cardboard export cartons, put application stickers on each side of the cartons
Color boxes will be accepted only when orders more than 50 sets.
Customer’s logo could be lasing mark on the aluminum parts of the shocks
