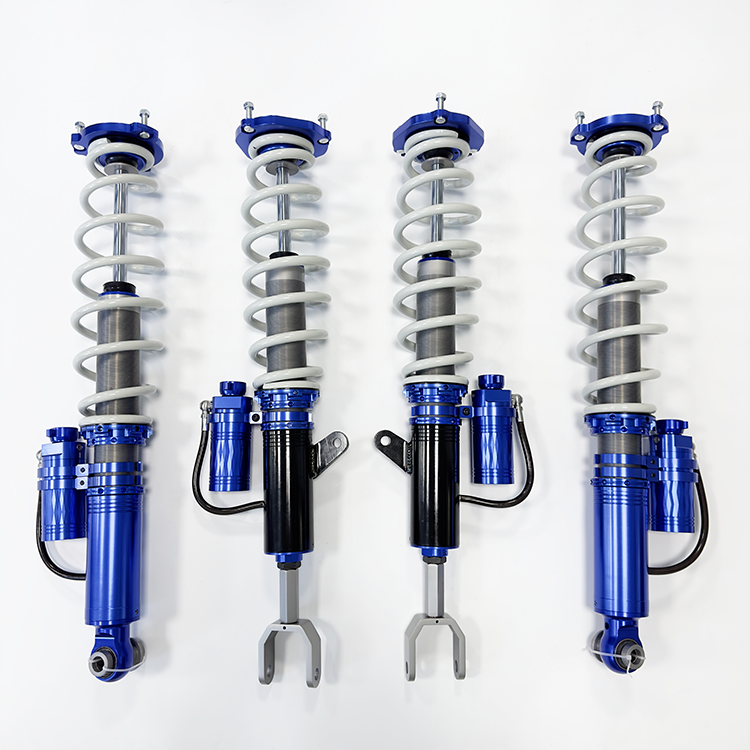

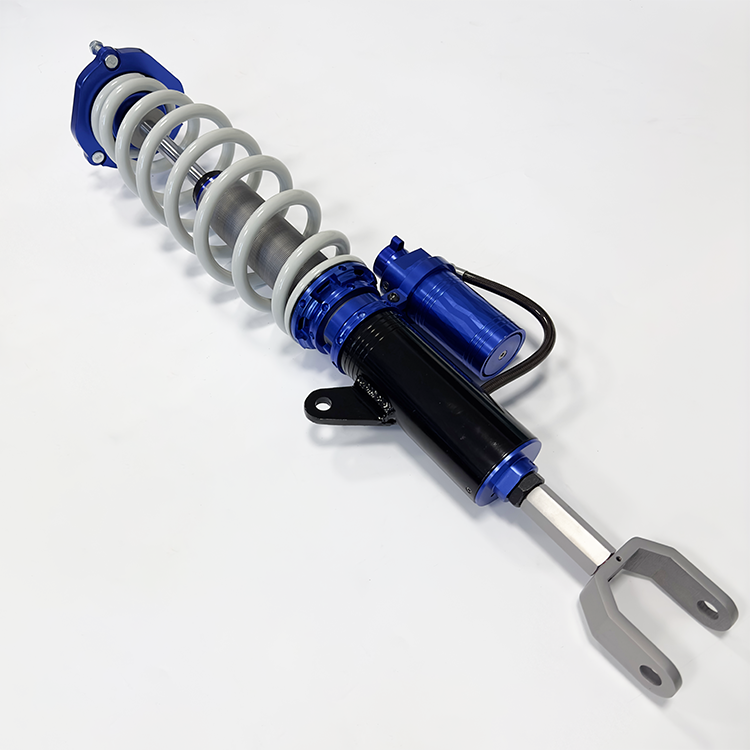

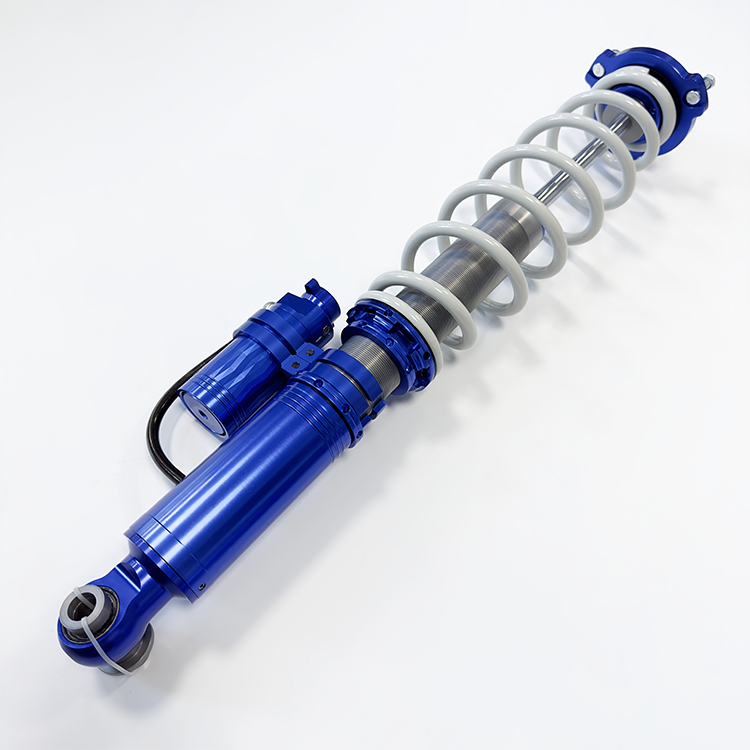

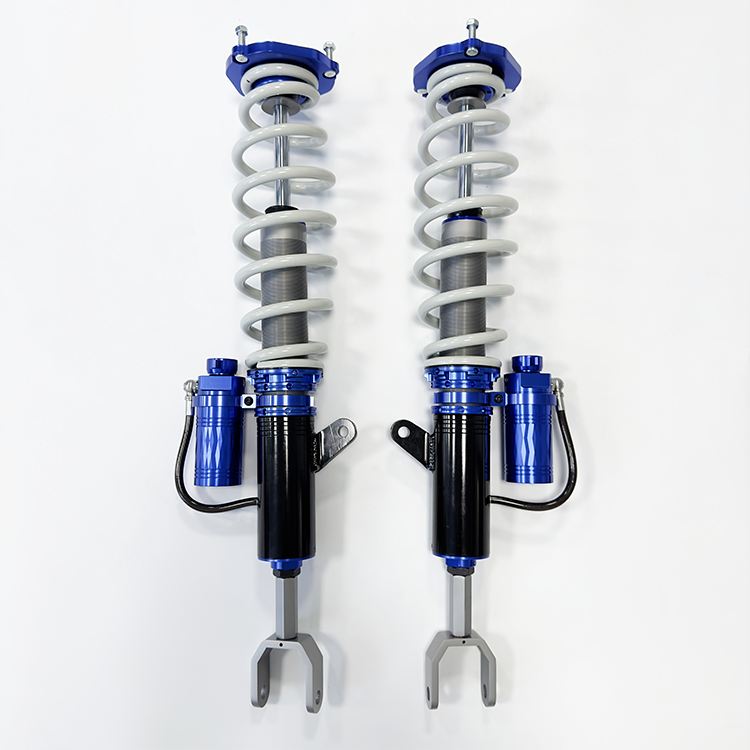

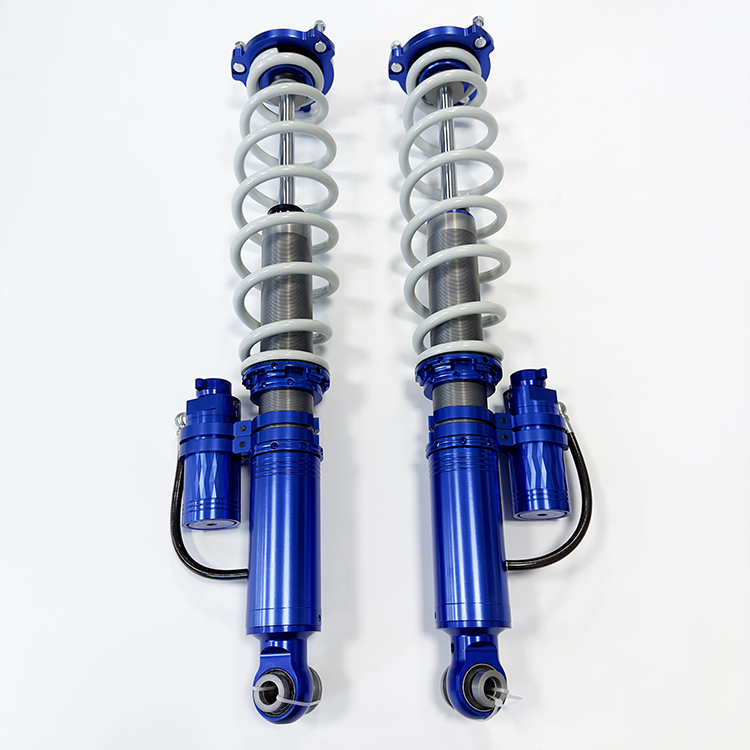

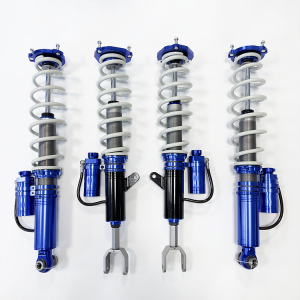

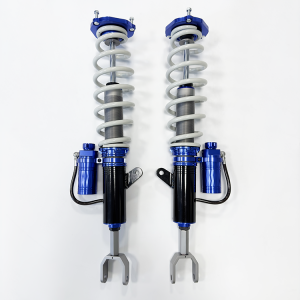

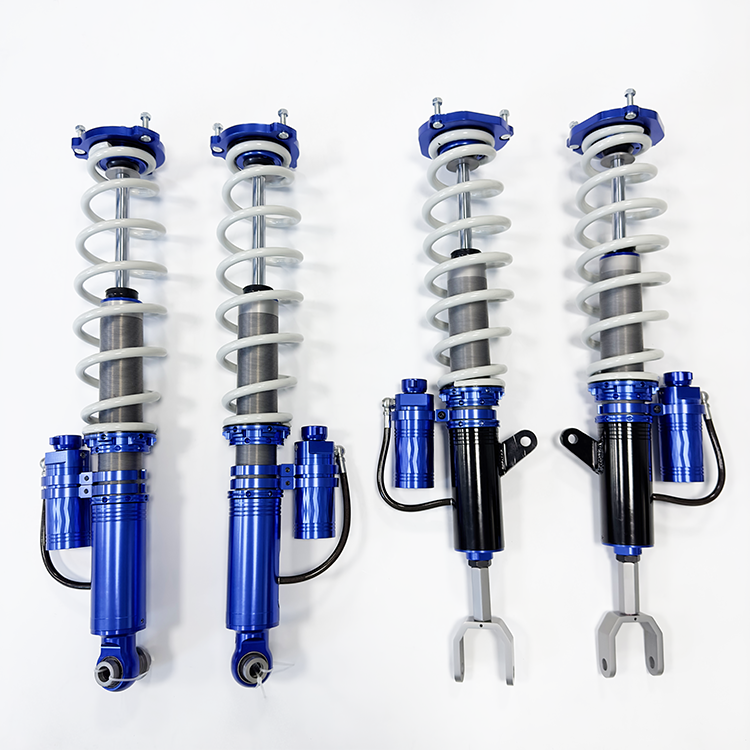

BMW 5 SERIES G30/G38 2017+ 2.0 SHOX factory high performance racing Nitrogen mono tube shocks With remote reservoir, one way/two-way adjustable

Short Description:

BMW 5 SERIES   G30/G38 2017+


Product Detail

Product Tags

FEATURES:

Design: Mono tube design

Body: Front & Rear coilover , seamless steel,

 internal & external polished and honed,

Body Plating: Environment friendly white zinc-galvanized surface,

Components: CNC machined 6061 aluminum alloy

 Valving: Tunable, velocity sensitive deburred valve shims

        Seal: Japan NOK twin-lips main oil seal (same with KYB OEM shock absorbers)

             wiper seal and scraper seal

        Oil: German FUCHS brand shock oil (freezing point lower than-53 ˚),

advanced suspension fluid for improved performance at variable temperatures.  Piston Rod: 18mm diameter, hard chrome plated, heat-treated

Piston Rings: PFTE materials

Eye ring: Rubber or Alloy Steel Bearing

Oil hose:Japan Teflon hose

2.0 REMOTE RESERVOIR:

Body: 6061 aluminum alloy, with heat dissipation system

Lubricant: Japan made lubricant oil

Piston: High or low flow piston

Adjustor: CNC machined aluminum

Charge inlet: Only specialist allowed operating the nitrogen releasing and charging



PARAMETERS:

Diameter: 2.0 inch

Adjust: Compression 8 steps adjust

Compression 8 steps +rebound 20 steps adjust

Height adjustable: lift 50 mm/ lower 60mm

Colors: red, yellow, green, pink, purple, black available

Application:

2017+   BMW 5 SERIES   G30/G38

TERMS:

 Payment terms: TT after order confirmation

   New items development: 2 weeks and for free, but need offer necessary samples or drawings

                    MOQ: Starts from one set

             Delivery time: 7-15 days after receiving the payment

Advantages:

-OE quality, OE INSTALLATION

 Designed according to OE standard, easy to install

- Stable performance, suitable all kinds of driving conditions/all terrain

  HPR shock absorbers are selecting high quality mechanism parts to make sure the extraordinary durability, intensity even in the extremely environments.

HPR shock absorbers provide tight grip and better manoeuving even in case of large load

-Comfortable, better manoeuving

 Height Higher-lower adjustable and performance hard-soft adjustable, to suitable not only mountain, desert, snow, racing field etc extreme conditions’ driving, but also the normal street use.

-Protect car body and other spare parts

 Reduce the impact to the car body, protecting other spare parts, meanwhile provides the driving comfortability



SHIPPING and PACKING:

Shipping:

Less than 5 sets: we suggest to deliver by express, such as TNT, DHL, FEDEX, UPS

More than 5 sets: we suggest to deliver by sea

Or, if you have forwarder in China, we can send goods to the appointed warehouse directly



Packing:

Every 1 piece shock packing in one carton, protected by PE Foam

Normally, we use 5 walls neutral yellow cardboard export cartons, put application stickers on each side of the cartons

Color boxes will be accepted only when orders more than 50 sets.

Customer’s logo could be lasing mark on the aluminum parts of the shocks
