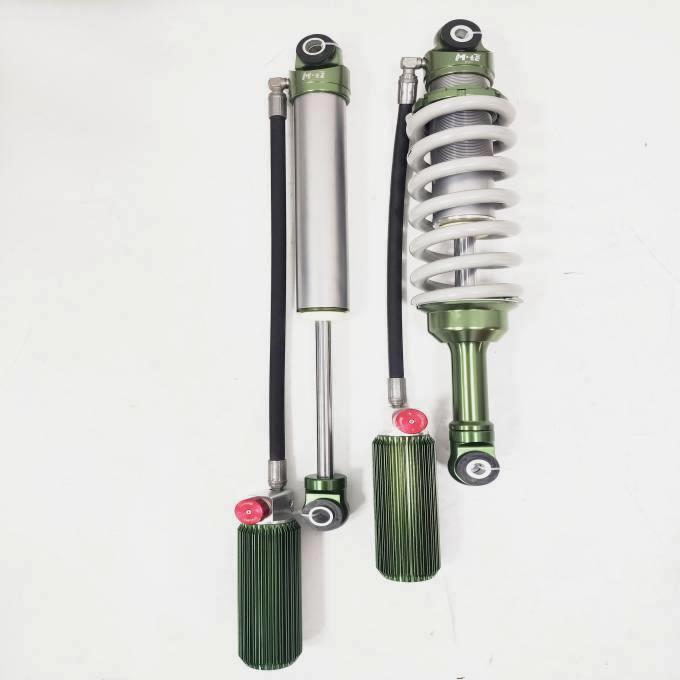

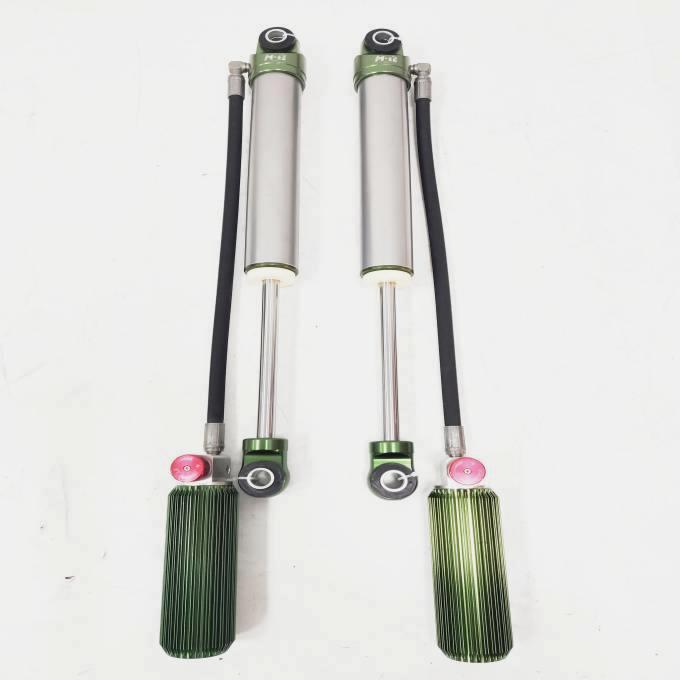

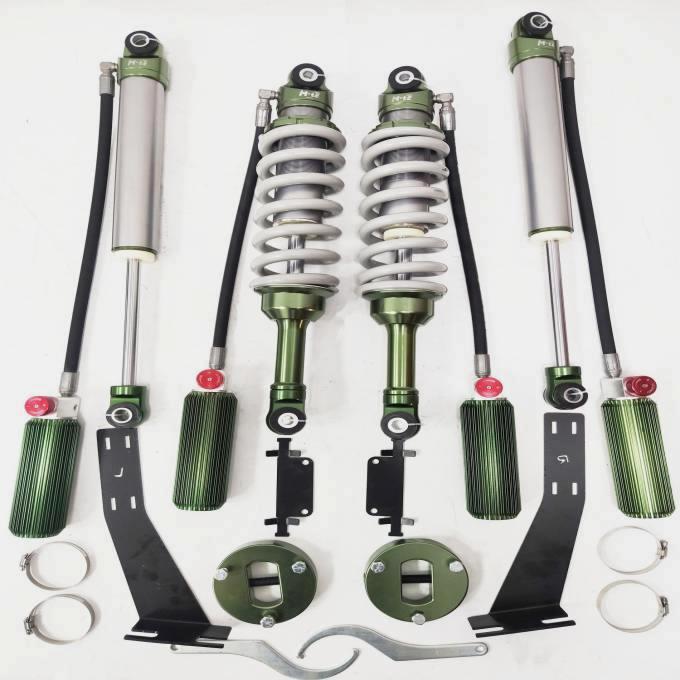

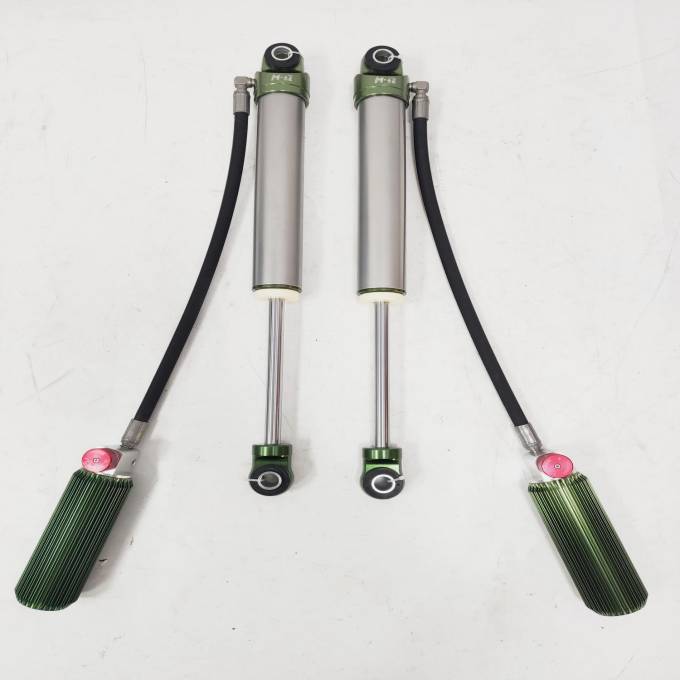

2.5 SHOX factory high performance offroad racing shocks 2.5 inches lift for TOYOTA HILUX REVO TRUCK, with remote reservoir
| Design | Mono tube design |
| Body | Front coilover, rear smooth body, seamless steel, internal & external polished and honed, |
| Body Plating | Environment friendly white zinc-galvanized surface, |
| Components | CNC machined 6061 aluminum alloy |
| Hose | German Continental brand oil hose, maximum pressure 22.4MPA |
| Valving | Tunable, velocity sensitive deburred valve shims |
| Seal | Japan NOK twin-lips main oil seal (same with KYB OEM shock absorbers)wiper seal and scraper seal |
| Oil | German FUCHS brand shock oil (freezing point lower than-53 ˚),Advanced suspension fluid for improved performance at variable temperatures. |
| Piston Rod | 22mm diameter, hard chrome plated, heat-treated |
| Piston Rings | PFTE materials |
| Bearing | Spherical, PFTE-lined, heat-treated alloy steel |
| 2.5/3.0 REMOTE RESERVOIR | |
| Body | 6061 aluminum alloy, with heat dissipation system |
| Lubricant | Japan made lubricant oil |
| Piston | High or low flow piston |
| Adjustor | CNC machined aluminum |
| Charge inlet | Only specialist allowed operating the nitrogen releasing and charging |
PARAMETERS:
Diameter: 2.5 inches
Lift: 0/2 inches lift available
Adjust: Compression 8 steps adjust
Compression 8 steps +rebound 6 steps adjust
Colors: red, yellow, green, pink, purple, black available
Application:
TOYOTA HILUX REVO all models
TERMS:
Payment terms: TT after order confirmation
New items development: 2 weeks and for free, but need offer necessary samples or drawing
MOQ: Starts from one set
Delivery time: 7-15 days after receiving the payment
-OE quality, OE INSTALLATION
Designed according to OE standard, easy to install
- Stable performance, suitable all kinds of driving conditions/all terrain
HPR shock absorbers are selecting high quality mechanism parts to make sure the extraordinary durability, intensity even in the extremely environments.
HPR shock absorbers provide tight grip and better manoeuving even in case of large load
-Comfortable, better manoeuving
Height Higher-lower adjustable and performance hard-soft adjustable, to suitable not only mountain, desert, snow, racing field etc extreme conditions’ driving, but also the normal street use.
-Protect car body and other spare parts
Reduce the impact to the car body, protecting other spare parts, meanwhile provides the driving comfortability
Shipping:
Less than 5 sets: we suggest to deliver by express, such as TNT, DHL, FEDEX, UPS
More than 5 sets: we suggest to deliver by sea
Or, if you have forwarder in China, we can send goods to the appointed warehouse directly
Nearest sea port: Ningbo port, or Shanghai port of China
Packing:
Every 1 piece shock packing in one carton, protected by PE Foam.
Normally, we use 5 walls neutral yellow cardboard export cartons, put application stickers on each side of the cartons
Color boxes will be accepted only when orders more than 50 sets.
Customer’s logo could be lasing mark on the aluminum parts of the shocks
